Vacuum Oven

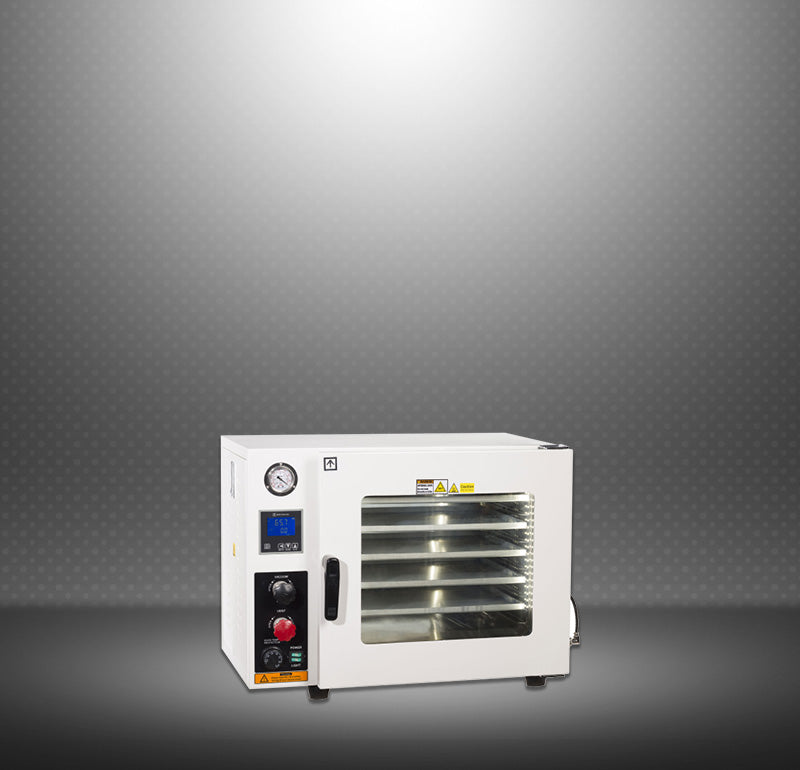

Vacuum Oven
Introducing the new Ai UL/CSA certified AccuTemp1.9 cubic foot vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, all stainless steel tubing/compression fittings, stainless steel vacuum/vent valve, oil-filled vacuum gauge, 5 sided pad heating technology and two year warranty. The thermal-conductive aluminum shelves provide excellent temperature uniformity inside the chamber, while our 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
5-shelf ovens are recommended for initial stage of solvent evaporation process; 10-shelf systems are recommended for second stage (after extract has "muffined").
Electrical requirements |
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
Chamber |
Size: 16.5 x 14.5 x 14" Material: Stainless steel Capacity: 1.9 cubic foot |
Heater | 5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W) |
Temperature control | Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 480°F Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes |
Vacuum |
Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 3/8" hose barb Vacuum pump: Sold separately |
Weight | Unit: 140 Lbs, shipping: 240 Lbs |
Dimensions (WxDxH) |
Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75" Shipping: 32 x 28 x 29" |
Shelves |
Included with oven purchase: 5 aluminum slide-in shelves Size: 16 x 14.25 inches Total area: 228 x 10 = 16 sq ft or 2,280 inch2 Distance between shelves: one inch *Optional 10 Shelf Unit (+$395) |
Warranty | 2 years |
UL Listing | YES - UL/CSA (E482564), CE |
Download | Product brochure |
