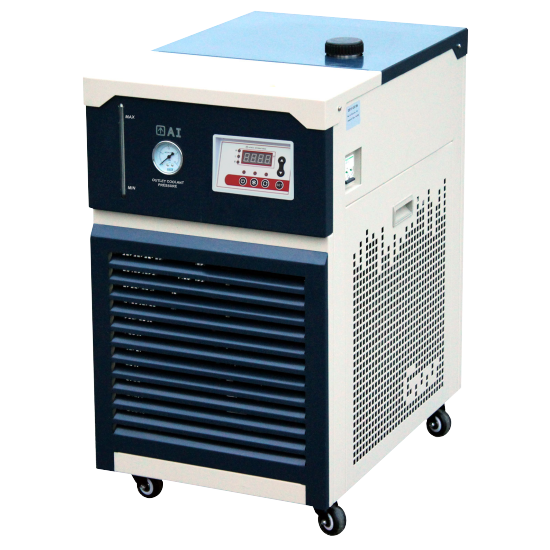

C30-30 Circulating Chiller
C30-30 Circulating Chiller
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
This unit is recommended for use with the Trifecta extraction system. Used primarily for chilling the Jacketed Pressure vessel to maintain lower pressures during the recovery process. In use this chiller generally maintains -20C to -10C during the recovery process when paired to the Trifecta. For colder cryo temps this can unit can be used with the Post Chiller.
| Temperature range | Ambient to -30°C (No load) |
| Electrical requirements |
220V 60Hz 1-PH 9A, 1,990 watts (Not compatible with 50Hz power) |
| Cooling capacity (Assuming working environment 25°C/77°F) |
@ 32°F/0°C: 2,800W @ 14°F/-10°C: 1,800W @-4°F/-20°C: 1,000W @-22°F/-30°C: 500W |
| Compressor | Make: Panasonic Power: 208-230V 60Hz 1-PH Number of compressor: one Refrigerant: R410A |
| Recirculating pump | Type: Centrifugal Output: 100 watts Pumping speed: 20 L/min or 5.3 gallon/min Maximum head: 20 feet or 6 meter Maximum pressure: 5.8 psi |
| Reservoir |
Material: Type 304 stainless steel, polished Chilling fluid connection: 3/8" hose barb x 2 Capacity: 30 liters or 8 gallons Dimensions: 23 x 15 x 7" (WxDxH) |
| Temperature controller |
Type: Digital microprocessor PID controlled |
| Unit/shipping weight | 220 Lbs / 280 Lbs |
| Warranty | One year |
| UL Listing | Available (+$1000) |
| Download | Product brochure |
