Anion Extractors

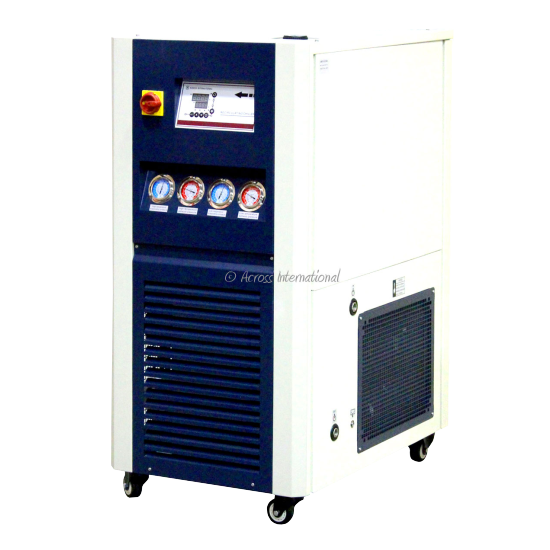

C80-10 Circulating Chiller

C80-10 Circulating Chiller

Regular price $19,499.99
Regular price Sale price $19,499.99
Sale Sold out
Shipping calculated at checkout.

Ai C80-10 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

C80 or as we call it "The Beast". For cryo temp injections, this is the unit.

With over 2000W at -40C, this unit has no problem maintaining -40C or lower temperatures during the recovery process. This can be paired with either the Minifecta or Trifecta extraction systems. On the Trifecta, this unit works well with the standard C30 paired to the Post Chiller, and the C80 paired directly to the jacketed pressure vessel. This allows the C30 to take the brunt of the temperature change by cooling the recovered solvent before it hits the pressure vessel. This allows the C80 to focus 100% of it's efforts maintaining the cryo temps in the pressure vessel. With this configuration constant -40C or lower temps are easily sustainable.

 Working temperature range  -40°C to -75°C (unit is not designed to run at temperature hotter than -40°C)
 Electrical requirements
 220V 60Hz 1-PH 22A, 4750 watts
 Compressor  Make: KK
 Power: 208-230V 60Hz 1-Phase
 Number of compressor: two
 Refrigerant: R404A (2680g) and R23 (710g)
 Cooling capacity (assuming
 working environment is
 25°C or 77°F)
 @ -40°C:       2000W
 @ -50°C:       1500W
 @ -60°C:       1000W
 @ -75°C:       280W
 @ -78°C:       180W
 Capacity: 10 liters or 2.6 gallons
 Dimensions: 17.5 x 7 x 8.5 inches (LxWxH)
 Material: Type 304 stainless steel
 Chilling fluid connection: 1/2" NPT
 Drain port: 3/8" barb
 Recirculating pump  Pump type: Centrifugal
 Model: 25PLBR30-10
 Pumping speed: 8 gallon/min or 30L/min
 Power: 280W
 Pressure: 1 bar
 Temperature controller  Digital microprocessor PID controlled
 Accuracy: +/- 2°C
 Display unit: Celsius °C
 Unit/shipping weight  515 lbs / 615 lbs
 UL Listing  Available (+$1000)
 Download  Product brochure
