H-100 Circulating Heater
H-100 Circulating Heater
Regular price
$989.99
Regular price
Sale price
$989.99
Unit price
per
Shipping calculated at checkout.

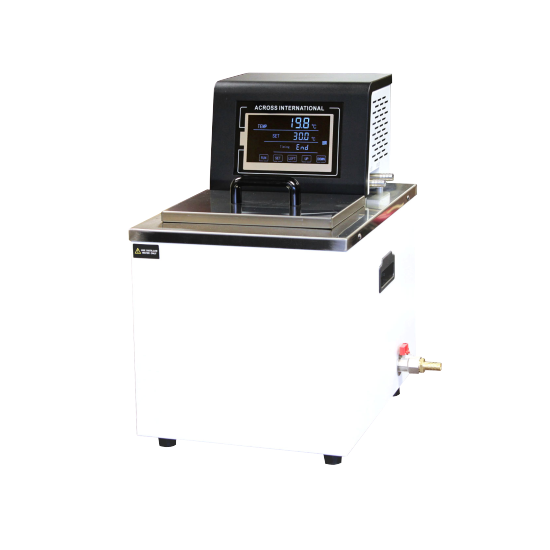

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
This unit is perfectly paired with either the Minifecta or the Trifecta systems. For ultra high performance two of these units can be paired with the Trifecta extended collection vessel system for dual zone temperature control.
| Temperature range | Ambient to 100°C (No load) |
| Electrical requirements |
110V 60Hz 1-Phase 1,050 watts |
| Heating capacity | 1,000 watts |
| Recirculating pump | Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters |
| Reservoir |
Dimensions: 9.5 x 12 x 7.5" (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Chilling fluid connection: 3/8" hose barb x 2 Chilling fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 100°C |
| Unit/shipping weight | 30 Lbs / 36 Lbs |
| Warranty | One year |
| UL Listing | Available (+$200) |
